NC Rockstar
Strengthen Cofidence with High Pressure

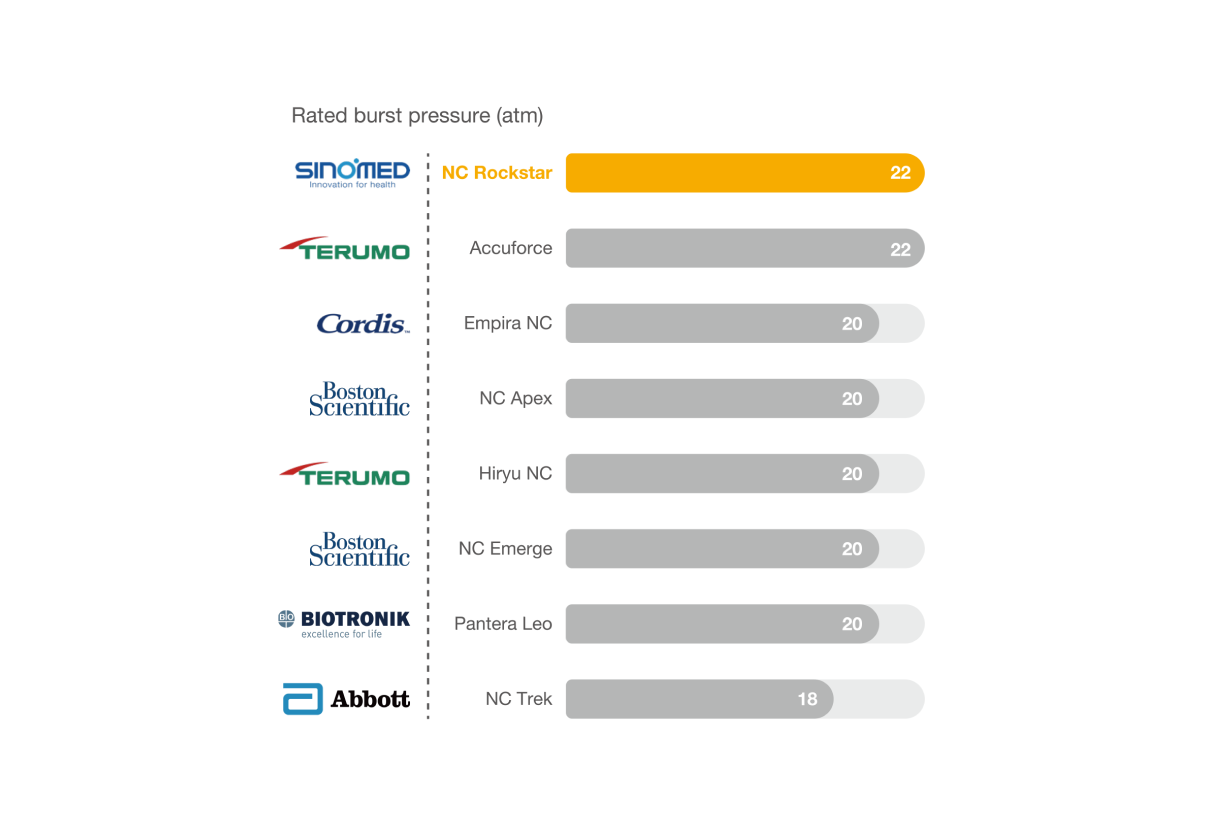

High Rated Burst Pressure
Double balloon structure makes NC Rockstar an excellent balloon with a high RBP compared to other NC balloons.

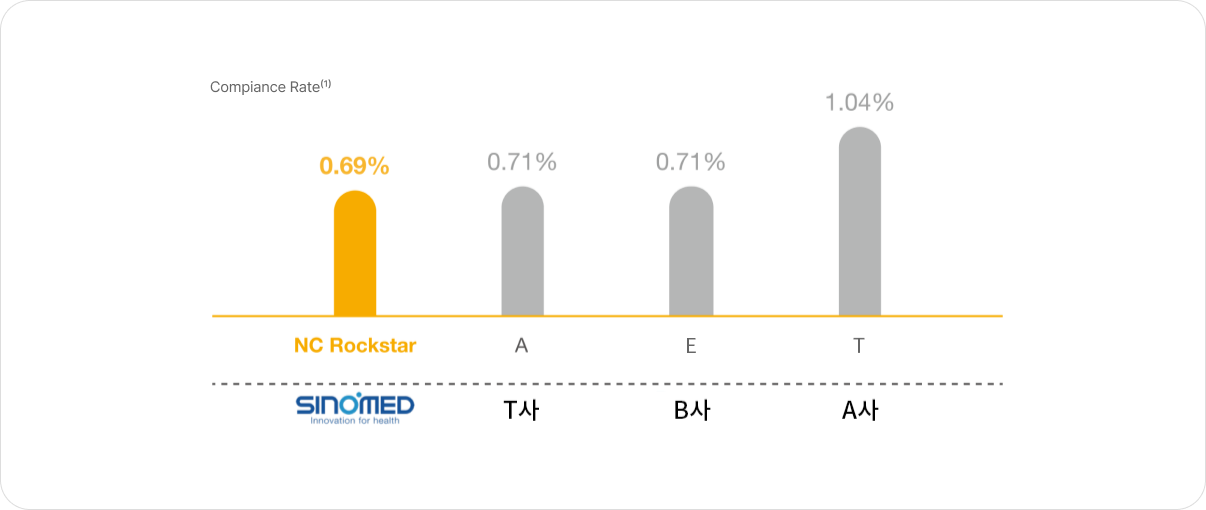

Lower Compliance Rate
The lower compliance ensures controlled minimal growth up to high pressures without any dog-bone effect.
(1) Compliance Rate, for balloon size 3.00mm. Data on file at SINOMED.
Reinforced Inner Tubing
Triple-layer inner tubing allows for better trackability and pushability after multiple advances in tortuous anatomy.

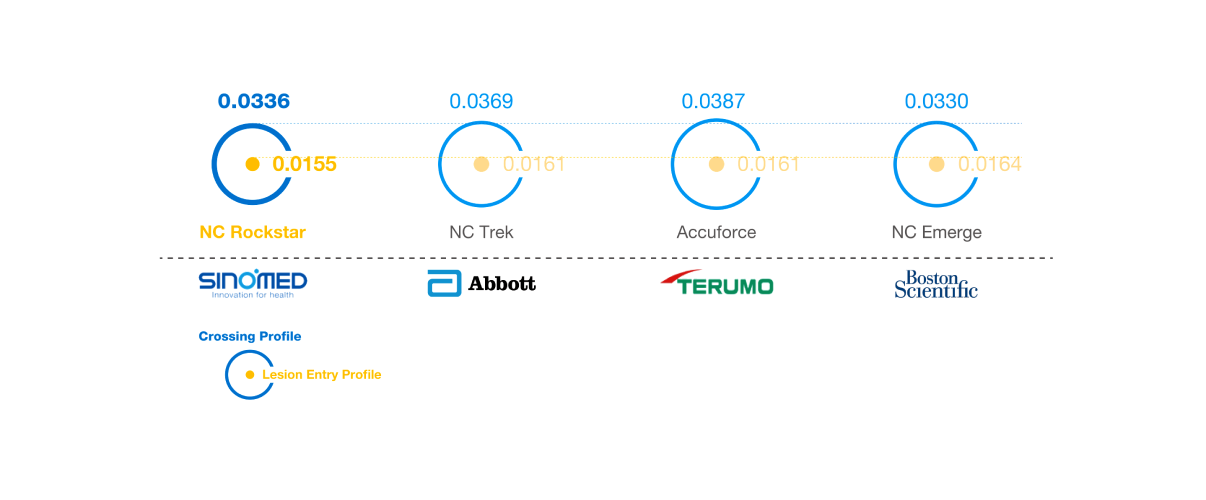

Competitve Lesion Entry Profile and Crossing Profile(2)
Extremely low lesion entry profile and small crossing profile help the balloon to cross the complex lesion and track tortuous anatomy.
(2) All catheters were measured at a comparable location (3.0mm balloons). Data on file SINOMED.
Technical Information
| Balloon Material | Shaft Diameters | Usable Length | Minimum Guiding Catheter |
Maximium Guide Wire |
|---|---|---|---|---|
| Double balloon materials | 2.0F proximal, 2.6F distal | 145 cm | 2.00-4.00 diameters: 5F; 4.50-5.00 diameters: 6F |
0.014” |
Ordering Information
| Diameter (mm) |
Length(mm) | |||
|---|---|---|---|---|
| 8 | 12 | 15 | 20 | |
| 2.00 | NCP-2.00-08-RX | NCP-2.00-12-RX | NCP-2.00-15-RX | NCP-2.00-20-RX |
| 2.25 | NCP-2.25-08-RX | NCP-2.25-12-RX | NCP-2.25-15-RX | NCP-2.25-20-RX |
| 2.50 | NCP-2.50-08-RX | NCP-2.50-12-RX | NCP-2.50-15-RX | NCP-2.50-20-RX |
| 2.75 | NCP-2.75-08-RX | NCP-2.75-12-RX | NCP-2.75-15-RX | NCP-2.75-20-RX |
| 3.00 | NCP-3.00-08-RX | NCP-3.00-12-RX | NCP-3.00-15-RX | NCP-3.00-20-RX |
| 3.25 | NCP-3.25-08-RX | NCP-3.25-12-RX | NCP-3.25-15-RX | NCP-3.25-20-RX |
| 3.50 | NCP-3.50-08-RX | NCP-3.50-12-RX | NCP-3.50-15-RX | NCP-3.50-20-RX |
| 3.75 | NCP-3.75-08-RX | NCP-3.75-12-RX | NCP-3.75-15-RX | NCP-3.75-20-RX |
| 4.00 | NCP-4.00-08-RX | NCP-4.00-12-RX | NCP-4.00-15-RX | NCP-4.00-20-RX |
| 4.50 | NCP-4.50-08-RX | NCP-4.50-12-RX | NCP-4.50-15-RX | NCP-4.50-20-RX |
| 5.00 | NCP-5.00-08-RX | NCP-5.00-12-RX | NCP-5.00-15-RX | NCP-5.00-20-RX |
Compliance Information
| Pressure (atm) |
Diameter(mm) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2.00 | 2.25 | 2.50 | 2.75 | 3.00 | 3.25 | 3.50 | 3.75 | 4.00 | 4.50 | 5.00 | |
| 12 | 2.00 | 2.25 | 2.50 | 2.75 | 3.00 | 3.25 | 3.50 | 3.75 | 4.00 | 4.50 | 5.00 |
| 20 | 2.18 | 2.42 | 2.62 | 2.92 | 3.20 | 3.40 | 3.66 | 3.97 | 4.22 | 4.74 | 5.24 |
| 22 | 2.21 | 2.45 | 2.65 | 2.96 | 3.24 | 3.43 | 3.70 | 4.01 | 4.27 | - | - |
NP-12 atm, RBP-22 atm (4.50mm, 5.00mm : 20 atm)
