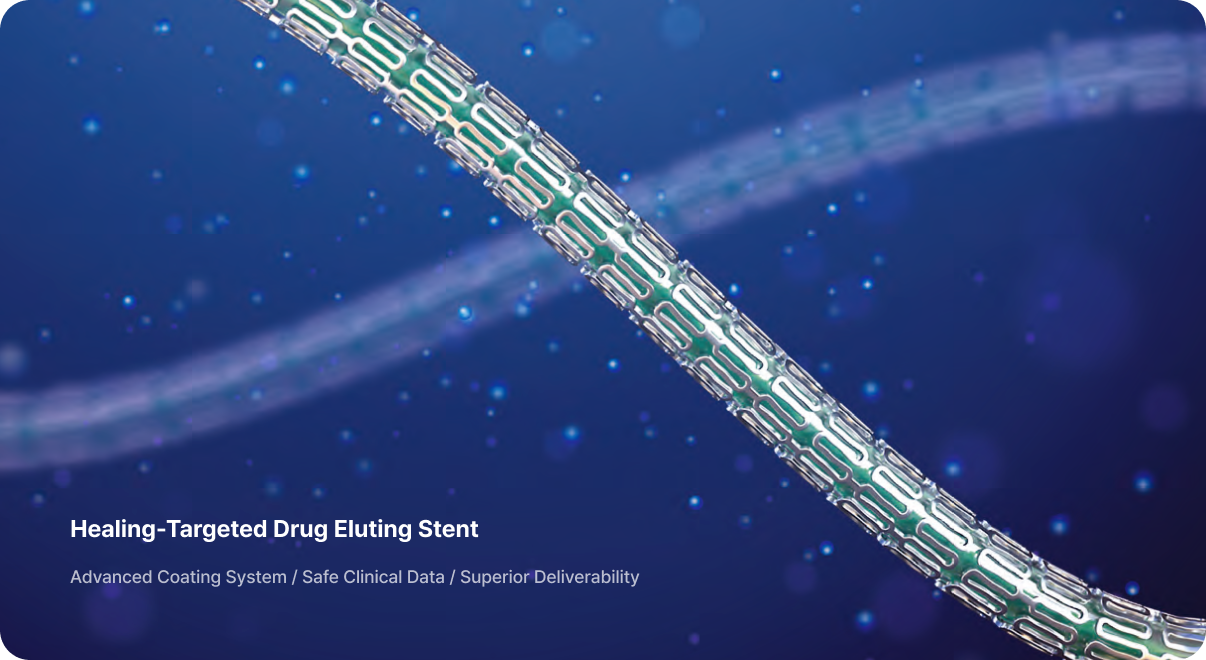

HT Supreme
Drug Coated Coronary Stent System
Healing-Targeted
A new class of DES tailored for rapid healing
(1) von Birgelen C. et al. First-in-man randomised comparison of the BuMA Supreme biodegradable polymer sirolimus-eluting stent versus a durable polymer zotarolimus-eluting coronary stent: the PIONEER trial. EuroIntervention. 2018 Apr 20;13(17):2026-2035. 2 Data on file at SINOMED.
(2) Data on file at SINOMED.
Safety-Targeted

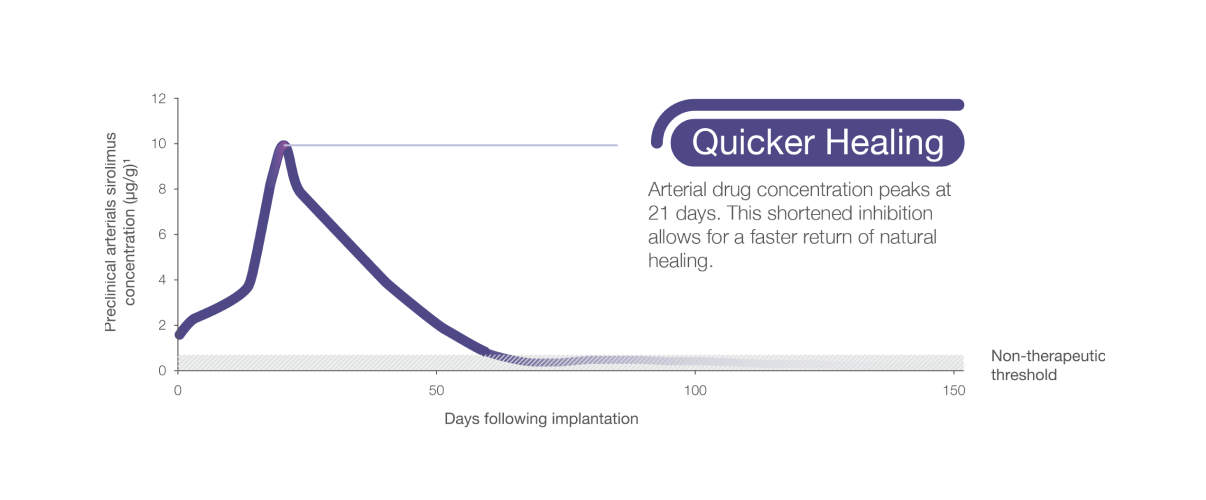

Allows a quicker return of the protective endothelial layer
(3) Sakamoto A, et al. Cardiovasc Revasc Med. 2021; 24:1-10.
(4) Lansky, A. J., et al. Novel Supreme Drug-Eluting Stents With Early Synchronized Antiproliferative Drug Delivery to Inhibit Smooth Muscle Cell Proliferation After Drug-Eluting Stents Implantation in Coronary Artery Disease: Results of the PIONEER III Randomized Clinical Trial. Circulation, 143(22), 2143-2154.
Consistency-Targeted

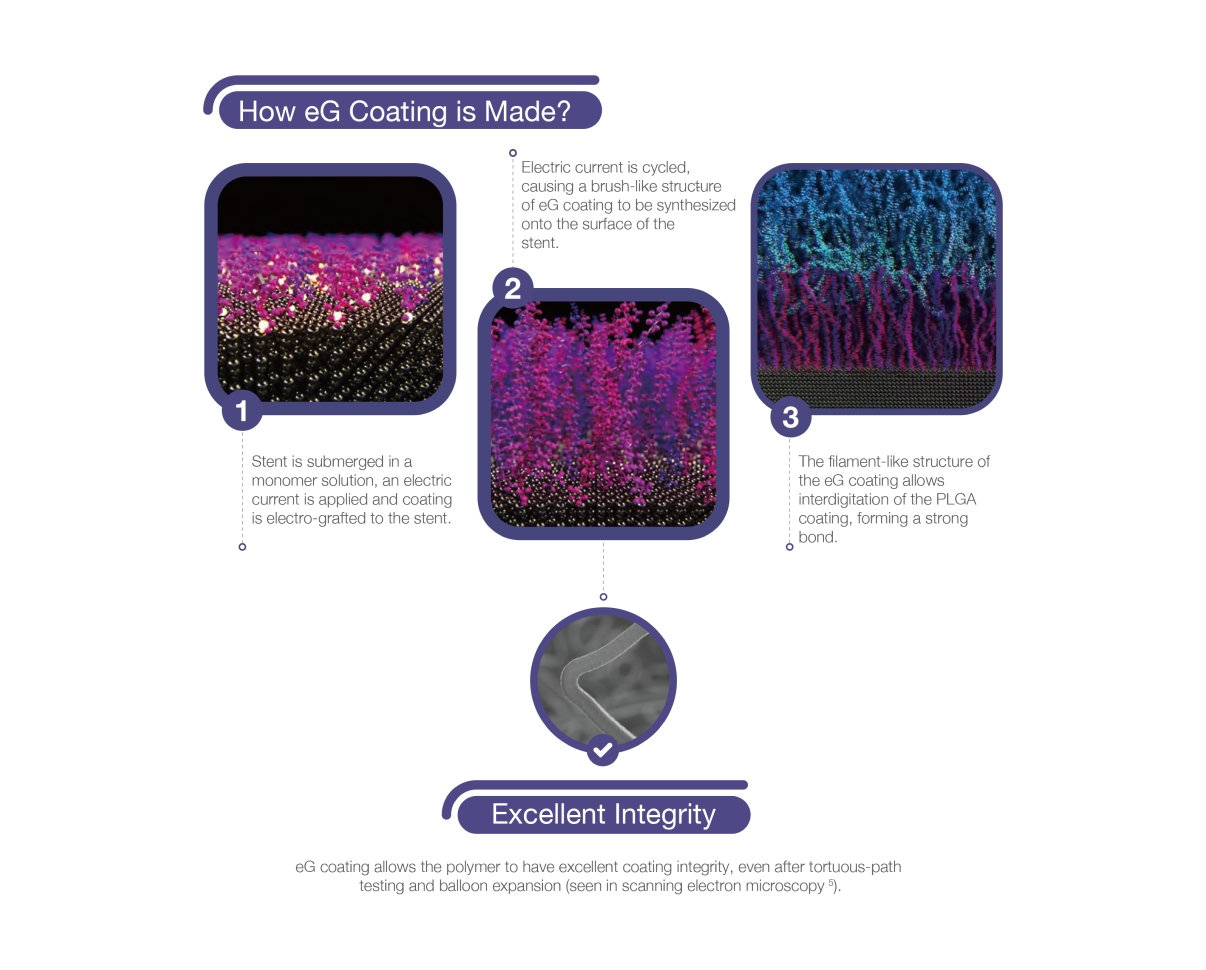

eG™ coated for stronger coating integrity and more consistent results
(5) Data on file at SINOMED.
Deliverability-Targeted

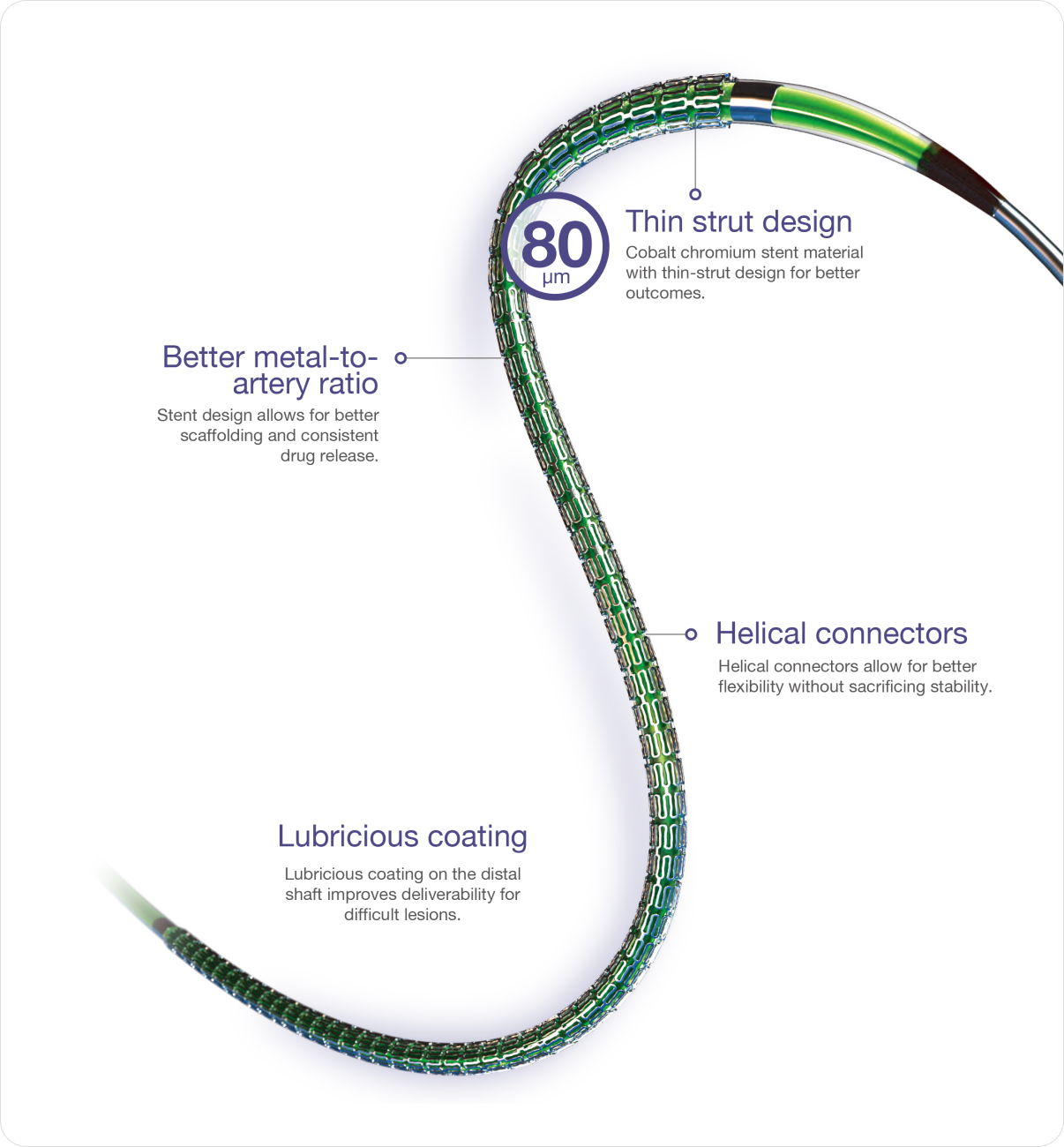

Stent and delivery system designed for excellent deliverability
Technical Information
| Stent Material | Base Layer | Polymer Material | Drug Dose |
|---|---|---|---|
| Cobalt Chromium Alloy | eG™ coating | PLGA | Sirolimus 1.2 µm / m㎡ |
| Strut Thickness | Recommend Guiding Catheter | Recommend Guiding Wire | Delivery System Length |
|---|---|---|---|
| 80 µm | 5 F | 0.014” | 145 cm |
Ordering Information
| Diameter (mm) |
Length(mm) | |||||
|---|---|---|---|---|---|---|
| 10 | 15 | 20 | 25 | 30 | 35 | |
| 2.25 | BMA-2.2510 | BMA-2.2515 | BMA-2.2520 | BMA-2.2525 | BMA-2.2530 | BMA-2.2535 |
| 2.50 | BMA-2.5010 | BMA-2.5015 | BMA-2.5020 | BMA-2.5025 | BMA-2.5030 | BMA-2.5035 |
| 2.75 | BMA-2.7510 | BMA-2.7515 | BMA-2.7520 | BMA-2.7525 | BMA-2.7530 | BMA-2.7535 |
| 3.00 | BMA-3.0010 | BMA-3.0015 | BMA-3.0020 | BMA-3.0025 | BMA-3.0030 | BMA-3.0035 |
| 3.25 | BMA-3.2510 | BMA-3.2515 | BMA-3.2520 | BMA-3.2525 | BMA-3.2530 | BMA-3.2535 |
| 3.50 | BMA-3.5010 | BMA-3.5015 | BMA-3.5020 | BMA-3.5025 | BMA-3.5030 | BMA-3.5035 |
Compliance Information
| Pressure (atm) |
Diameter(mm) | |||||
|---|---|---|---|---|---|---|
| 2.25 | 2.50 | 2.75 | 3.00 | 3.25 | 3.50 | |
| 10 | 2.25 | 2.50 | 2.75 | 3.00 | 3.25 | 3.50 |
| 18 | 2.43 | 2.85 | 3.07 | 3.34 | 3.57 | 3.98 |
NP-10 atm, RBP-18 atm
