Ceraflex
Operation Procedure Superiority
Benefit
Innovative Delivery System
-

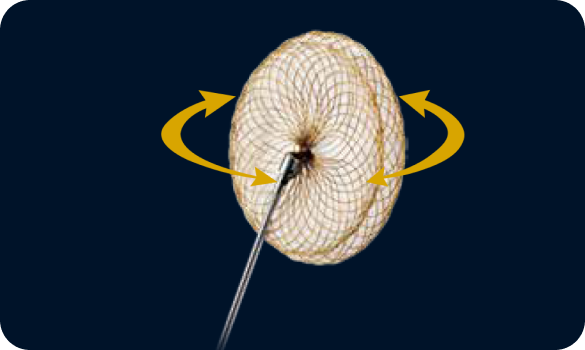

360 flexible rotation, accurate positioning and safe detachment
-

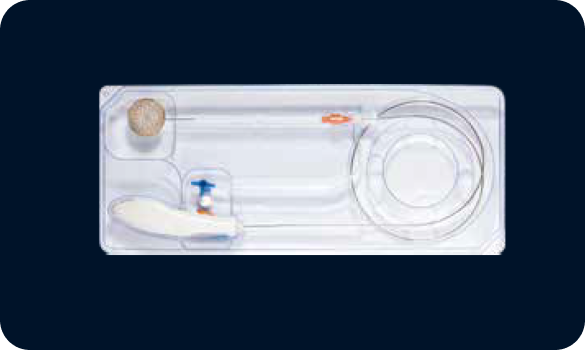

Pre-mounted delivery system, shorter operation time
-

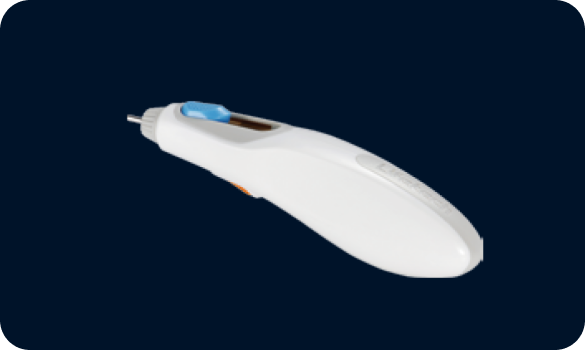

Lock/release mechanism, easy and convenient operation(1)
-

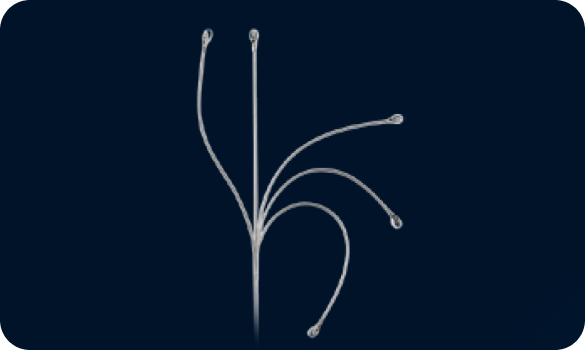

Soft delivery cable, minimizing the unwanted damage of heart or vessel tissue
(1) M.A. Astarcioglu. M. Kalcik, etc., Ceraflex™ versus Amplatzer occluder for secundum atrial septal defect closure-Multicenter clinical experience, Herz.
2015 Apr.;40 Suppl 2:146-50. doi: 10.1007/s00059-014-4192-0.

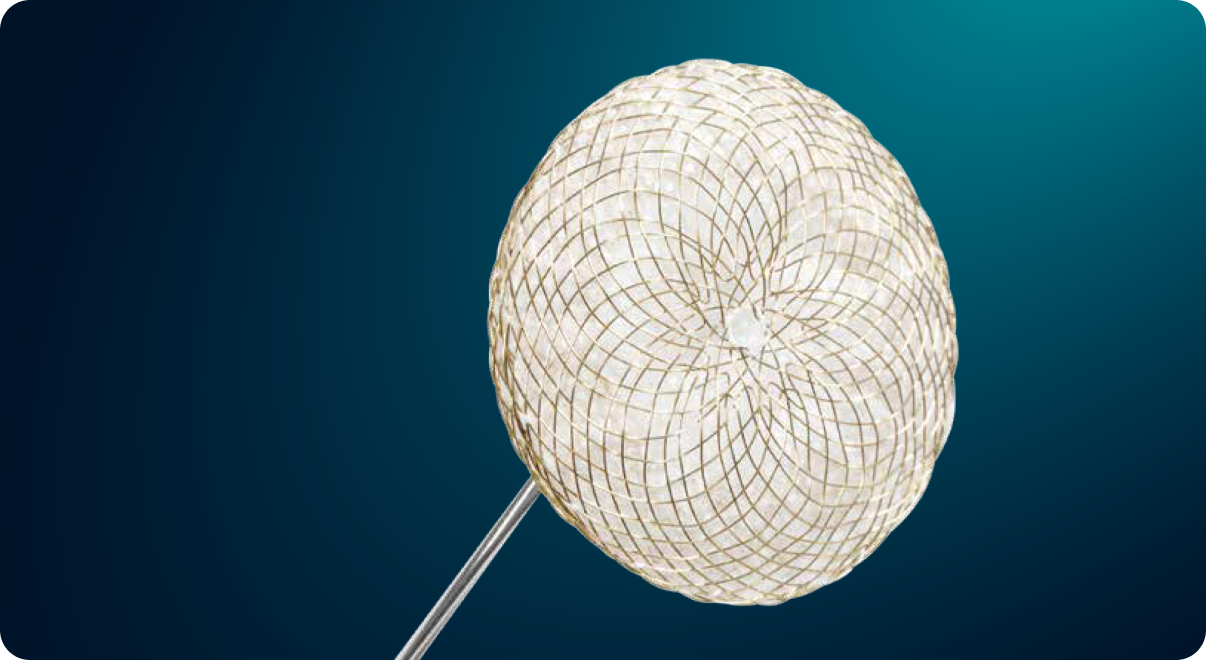

Excellent Braided Structure
- Decrease the chance of clot formation on the left atrial disc with braided technology
- Offer better adaptation in the interatrial septum with flexible disc
Titanium Nitride
(TiN) Coating
Technology
- Prevent nickel leaching(2)
- Accelerate endotheliaization and close defect rapidly
- Soften nithnol material and provide a more compliant and flexible implant
(2) D.Y. Zhang, W.J. Zeng, Z.J. Zi, and P.K. Chu, Fabrication of graded TiN coatings on nitionol occuuders and effects on in vivo nickel release, Materials Science and Engineering C. 29(2009), 1599-1603.
Clinical Application

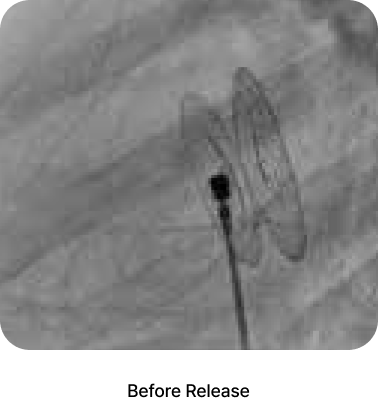

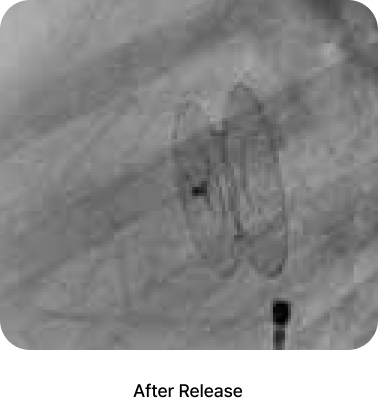

The CeraFlex™ wire loop connection system offers an accurate final positioning without the adverse tension or stress caused by the delivery cable.

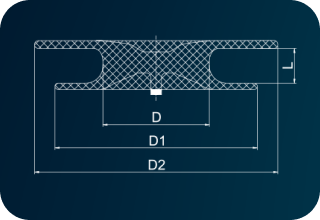

CeraFlex™ ASD
| Code | [D]Waist Diameter (mm) |
[D1]Right Disc Diameter(mm) |
[D2]Left Disc Diameter(mm) |
[L]Waist Length (mm) |
Minimum Recommended Sheath SizeSteerEase™(Fr.) |
|---|---|---|---|---|---|
| LT-ASDf-06 | 6 | 14 | 18 | 4 | SFA8F-f |
| LT-ASDf-08 | 8 | 16 | 20 | 4 | SFA8F-f |
| LT-ASDf-10 | 10 | 18 | 22 | 4 | SFA8F-f |
| LT-ASDf-12 | 12 | 22 | 26 | 4 | SFA9F-f |
| LT-ASDf-14 | 14 | 24 | 28 | 4 | SFA10F-f |
| LT-ASDf-16 | 16 | 26 | 30 | 4 | SFA10F-f |
| LT-ASDf-18 | 18 | 28 | 32 | 4 | SFA10F-f |
| LT-ASDf-20 | 20 | 30 | 34 | 4 | SFA12F-f |
| LT-ASDf-22 | 22 | 32 | 36 | 4 | SFA12F-f |
| LT-ASDf-24 | 24 | 34 | 38 | 4 | SFA12F-f |
| LT-ASDf-26 | 26 | 36 | 40 | 4 | SFA12F-f |
| LT-ASDf-28 | 28 | 38 | 42 | 4 | SFA12F-f |
| LT-ASDf-30 | 30 | 40 | 44 | 4 | SFA14F-f |
| LT-ASDf-32 | 32 | 42 | 46 | 4 | SFA14F-f |

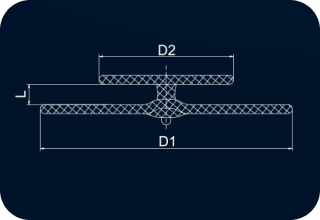

CeraFlex™ MF-ASD
| Code | [D1]Right Disc Diameter(mm) |
[D2]Left Disc Diameter(mm) |
[L]Waist Length (mm) |
Minimum Recommended Sheath SizeSteerEase™(Fr.) |
|---|---|---|---|---|
| LT-ASDf-MF-1818 | 18 | 18 | 3 | SFA9F-f |
| LT-ASDf-MF-2518 | 25 | 18 | 3 | SFA10F-f |
| LT-ASDf-MF-2525 | 25 | 25 | 3 | SFA10F-f |
| LT-ASDf-MF-3030 | 30 | 30 | 3 | SFA12F-f |
| LT-ASDf-MF-3525 | 35 | 25 | 3 | SFA14F-f |
| LT-ASDf-MF-3535 | 35 | 35 | 3 | SFA14F-f |
| LT-ASDf-MF-4040 | 40 | 40 | 3 | SFA14F-f |

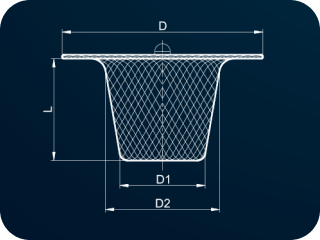

CeraFlex™ PDA
| Code | [D]Retention Skirt (mm) |
[D1]Proximal Diameter(mm) |
[D2]Distal Diameter(mm) |
[L]Waist Length (mm) |
Minimum Recommended Sheath SizeSteerEase™(Fr.) |
|---|---|---|---|---|---|
| LT-PDAf-0406 | 10 | 4 | 6 | 7 | SFP6F-f |
| LT-PDAf-0608 | 12 | 6 | 8 | 7 | SFP7F-f |
| LT-PDAf-0810 | 14 | 8 | 10 | 7 | SFP7F-f |
| LT-PDAf-1012 | 16 | 10 | 12 | 7 | SFP8F-f |
| LT-PDAf-1214 | 20 | 12 | 14 | 7 | SFP9F-f |
| LT-PDAf-1416 | 22 | 14 | 16 | 8 | SFP9F-f |
| LT-PDAf-1618 | 24 | 16 | 18 | 8 | SFP10F-f |
| LT-PDAf-1820 | 26 | 18 | 20 | 9 | SFP12F-f |
| LT-PDAf-2022 | 28 | 20 | 22 | 9 | SFP12F-f |
| LT-PDAf-2224 | 30 | 22 | 24 | 10 | SFP14F-f |

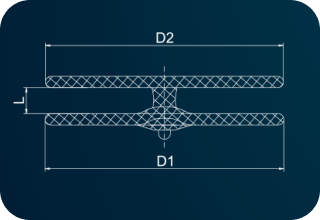

CeraFlex™ PFO
| Code | [D1]Right Disc Diameter(mm) |
[D2]Left Disc Diameter(mm) |
[L]Waist Length (mm) |
Minimum Recommended Sheath SizeSteerEase™(Fr.) |
|---|---|---|---|---|
| LT-PFOf-1818 | 18 | 18 | 3 | SFA9F-f |
| LT-PFOf-2518 | 25 | 18 | 3 | SFA10F-f |
| LT-PFOf-2525 | 25 | 25 | 3 | SFA10F-f |
| LT-PFOf-3025 | 30 | 25 | 3 | SFA12F-f |
| LT-PFOf-3030 | 35 | 30 | 3 | SFA12F-f |
| LT-PFOf-3525 | 35 | 25 | 3 | SFA14F-f |
